A dry-type transformer is a critical component in modern electrical systems, designed to efficiently transfer electrical energy without using insulating liquid. Unlike oil-filled transformers, these units rely on air or another gas as a cooling medium, making them safer and environmentally friendly. This article into the construction, applications, and protection mechanisms for dry type transformers, emphasizing their advantages and the importance of robust protection schemes.
Table of Contents
Construction and Types of Dry-Type Transformers
Dry-type transformers utilize high-quality insulation systems such as epoxy resin or varnish to prevent electrical faults. The windings and core are designed to maximize efficiency and minimize losses. These transformers are typically classified into the following types:
- Cast Resin Transformers (CRT): These transformers have their windings encapsulated in epoxy resin, offering excellent moisture and dust.
- Vacuum Pressure Impregnated (VPI) Transformers: Windings are impregnated with varnish under vacuum pressure, enhancing mechanical strength and environmental protection.
These designs make dry-type transformers highly reliable, especially in environments where fire safety and environmental considerations are paramount.

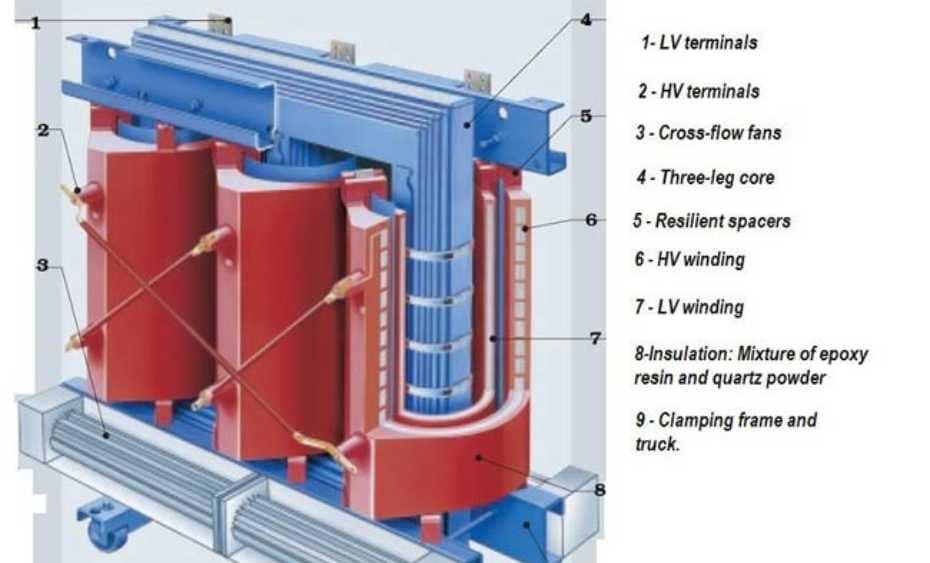

Composition of Dry-Type Transformers
Dry-type transformers consist of several key components that ensure their efficient operation and durability:
- LV Terminals: Low voltage terminals connect the transformer to the load or distribution system.
- HV Terminals: High voltage terminals link the transformer to the power supply source.
- Cross-Flow Fans: These fans provide forced air cooling, enhancing heat dissipation in high-capacity transformers.
- Three-Leg Core: The magnetic core, usually made of laminated silicon steel, minimizes energy losses and provides a path for the magnetic flux.
- Resilient Spacers: These components ensure mechanical stability and proper spacing between the windings.
- HV Winding: High-voltage windings are insulated and designed to handle incoming high-voltage currents.
- LV Winding: Low voltage windings transfer reduced voltage currents to the connected load.
- Insulation: High-grade insulation materials protect the windings and prevent electrical faults.
- Clamping Frame and Truck: These provide structural support and enable easy transportation and installation of the transformer.
Each of these components plays a vital role in the overall functionality and safety of the transformer.
Key Advantages of Dry-Type Transformers
The absence of flammable liquids significantly reduces the risk of fire, making dry-type transformers a safe choice for indoor applications. This safety feature makes them particularly suitable for environments where fire hazards must be minimized.
With no risk of oil leakage, dry-type transformers are environmentally friendly and ideal for installations prioritizing sustainability. Their design ensures compliance with eco-conscious standards, contributing to greener and safer operations.
The minimal use of moving parts and the absence of oil-based cooling systems simplify maintenance. This design not only reduces operational complexity but also lowers long-term maintenance costs, making these transformers an efficient choice for various applications.
Dry-type transformers are highly durable, offering enhanced resistance to moisture and chemical contaminants. This resilience ensures a longer lifespan and reliable performance, even in challenging and harsh operating environments.
These benefits make dry-type transformers indispensable in hospitals, high-rise buildings, commercial complexes, and industrial plants.
Applications
Dry-type transformers are widely utilized across diverse industries due to their remarkable versatility. In industrial facilities, they provide reliable power for heavy machinery and processing units, ensuring smooth and efficient operations. In commercial buildings, these transformers play a crucial role in distributing power efficiently across multi-story structures, supporting various electrical loads.
In the renewable energy sector, dry-type transformers are integral to wind and solar power installations, facilitating the seamless transmission of clean energy. They are also essential in data centers, where stable and reliable power is critical for maintaining uninterrupted IT infrastructure. Additionally, their ability to perform reliably in high-temperature and high-humidity environments further broadens their application scope, making them an ideal choice for challenging operating conditions.
Protection Mechanisms for Dry-Type Transformers
Given their critical role, ensuring the protection of dry-type transformers is paramount. Proper protection safeguards the equipment from overloads, short circuits, and other electrical anomalies. Key protection mechanisms include:
Overcurrent Protection
Overcurrent protection is essential to prevent overheating due to excessive current. Relays are configured to trip circuit breakers when fault currents exceed safe operating limits. Time-current settings ensure coordination across the power system.
Differential Protection
Differential protection monitors the current entering and leaving the transformer. Any imbalance indicates a fault within the transformer, triggering immediate isolation to prevent damage.
Thermal Protection
Thermal sensors embedded within the windings monitor temperature. If the transformer exceeds its safe operating temperature, alarms or automated trips are activated.
Restricted Earth Fault (REF) Protection
This protection is critical for detecting low-magnitude ground faults within the transformer windings. REF systems ensure swift fault clearance, reducing potential damage.
Voltage Protection
Overvoltage and undervoltage relays protect the transformer against fluctuations that could lead to insulation breakdown or winding damage.
Maintenance Practices to Improve Protection
Enhancing the reliability of dry-type transformers involves adopting essential maintenance practices. Thermal imaging is a key method used to identify hotspots and prevent overheating, ensuring optimal performance. Insulation resistance testing plays a critical role in verifying the integrity of insulation systems, safeguarding against potential failures. Regular visual inspections are equally important, focusing on detecting physical damage, cracks, or signs of wear on the windings.
Periodic assessments are vital to ensure the transformer operates within its design parameters. These evaluations minimize the risk of unplanned outages, contributing to the consistent and reliable functioning of the transformer in various applications.
Conclusion
The dry-type transformer is a versatile and safe solution for modern power distribution needs. Its robust design and environmentally friendly characteristics make it a preferred choice across industries. However, ensuring optimal performance requires the implementation of comprehensive protection schemes and regular maintenance.
By understanding the fundamentals of dry-type transformers and their protection requirements, businesses can achieve reliable and efficient power distribution while minimizing operational risks. Investing in these systems not only improves safety but also contributes to a sustainable energy future.
FAQ
What is a dry-type transformer?
A dry-type transformer is a type of electrical transformer that does not use liquid insulation or cooling. Instead, it relies on air as a cooling medium, making it a safer and environmentally friendly option for various applications.
What are the main benefits of dry-type transformers?
Dry-type transformers offer several benefits, including enhanced safety due to the absence of flammable liquids, environmental friendliness with no risk of oil leakage, low maintenance requirements, and high durability in harsh conditions.
Can dry-type transformers operate in extreme environments?
Yes, they are highly durable and can operate reliably in high-temperature, high-humidity, and chemically aggressive environments, making them suitable for various industrial and commercial settings.
